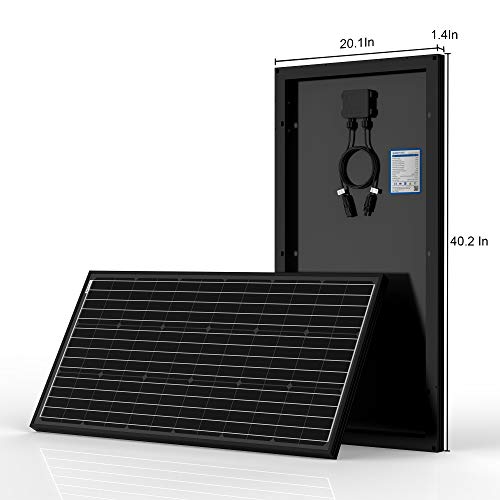

ACOPOWER 800W MONO SOLAR KITS100W Mono Solar Panel
Peak Energy (Pmax):100W
Peak Circuit Voltage(Voc):22V
Max Energy Voltage(Vmp):17.48V
Quick Circuit Present(Isc):6.14A
Max Energy Present(Imp):5.71A Energy Tolerance Vary:0~ +3%
Most System Voltage DC:1000V
Wind resistance:2400pa
Weight:12.8 lb
Dimension:40.2*20.1*1.4 Inch
Software Calass:Class A
Check situation:1000W/m², AM1.5,25℃

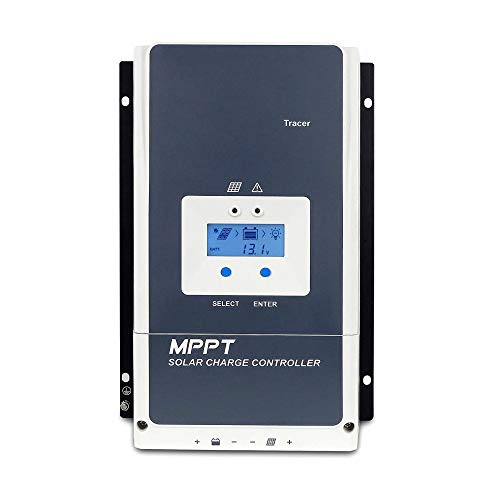

60A MPPT Charge Controller Extremely-fast monitoring velocity Precisely recognizing and monitoring of a number of energy level Person programmable for battery varieties, load management and so on. Frequent unfavourable grounding design
Rated charge present: 60A
Nominal system voltage:12v/24v/36v/48v DC auto work
Max. PV open circuit voltage:150V/138V
MPP voltage vary:V(BAT)+2V～108V
Max. PV enter energy: 750W/12V, 1500W/24V, 2250W/36V ,3000W/48V
Enclosure: IP30
Mounting Z Bracket-8Sets

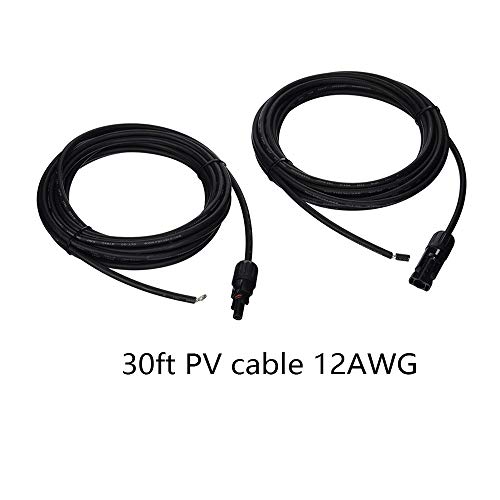

1PC 30ft 12AWG PV Cable

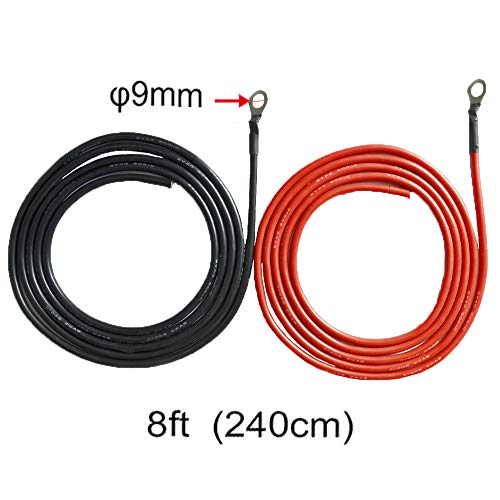

1PC 8FT 8AWG Tray Cable
1PC Cable Entry Housing;
2 Pair 1Y4 Department connector:1 male to 4 feminine(M/FFFF) and 1 feminine to 4 male(F/MMMM).

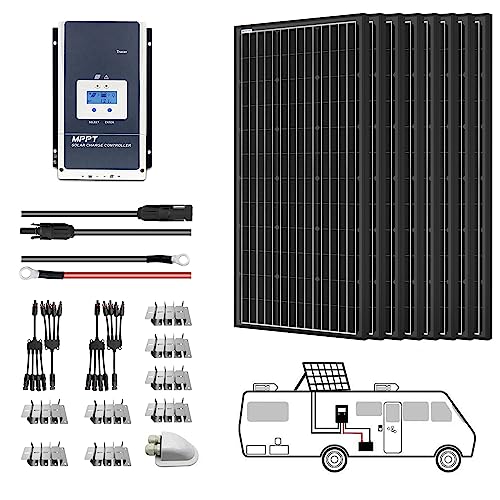

8PCS ACOPOWER 100-Watt monocrystalline solar panels may be related in parallel by department connectors or related in sequence with none connectors; Dimension:40.2 x 20.1 x 1.4 Inch; 60A MPPT Charge Controller
MPPT Solar Charge Controller has person adjustable settings! LCD Display reveals, voltage, solar panel standing, battery state of charge, and DC load draw. See Picture in photograph gallery for all LCD Display readouts. Appropriate with lead acid, AGM, gel, and lithium batteries
Unfavourable Grounding Design and superior MPPT management algorithm make it charging effectivity a minimum of 99.5 Proportion , it maximize the charging energy as a method of saving the vitality.
Designed for RVs, cabins, houses, boats, back-up and distant energy use. The 2 solar panels may be wired in parallel for 12V battery charging or in sequence for 24V battery charging
25-year transferable energy output guarantee on panels and 1-year guarantee on relaxation of the equipment elements
